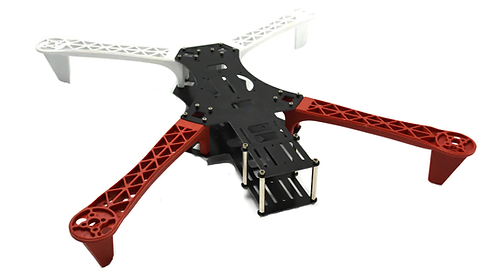

REPTILE 500 Alien Multi-copter 500mm frame

REPTILE 500 Alien Multi-copter 500mm Quadcopter.

Features:

– Center lower plate: 1-4pcs 45 * 45mm

– With Extend board, the ESC parallel plates

or 4-in-1 ESC can be installed on it.

– With mounting holes for Wireless Transmitter ,

CCD,OSD,GPS antenna,special design for

installing NAZA flight control  Pixkawk apm2.8 etc

(long hole left for VELCRO to fix the controller),

holes for tall landing skill.

– Center upper plate: with cross holes for mounting  GPS

and aluminum mounting plate (38 * 38/33 * 33)

in front of it for FPV camera.

– Transmitter or remote control receiver and other components

can be set at the end of the plate.

– propeller can be used:10 inches 11 inches 12 inches

– Recommended motor: 2212.2312.2216.4006.5005

Specification:

– Wheelbase:500mm

– Min Arm distance:380mm

– Max Arm distance:480mm

– Material:Glassfiber+ ABS Plastic

– Color:(2 White and 2 Red arms)

– Weight:400

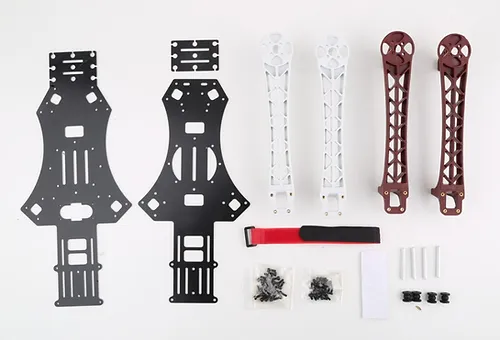

Package includes:

– Frame* 1 Set

– Mounting screws* 1 Pack (Aluminum column is M2.5*40mm)

– Belt*1pcs (color is at random)
