Radiolink Original PIXHAWK with Radiolink M8N gps SE-100 Combo Kit



This is original radiolink pixhawk better than chinese pixhawk



Radiolink PIXHAWK A Flight Controller Combo with radiolink Gps se-100FC 32 Bit with Power Module

Based on the original functions of the 3DR PIX, almost two years of technical development in the field of flight controllers by the Radiolink technical team, redesigned and innovated the PIX original circuit, and repeatedly tested the function to achieve better performance.

Anti-static from SMT to welding, all the chips, processor, sensors and others are import with whole package by primary agency, dust-free environmental protection workshop and automatic manufacture ensure the PIXHAWK are durable.

Reduce the mutual interference of the internal components of the flight control board, achieve noise less, more accurate of compass, and make flight safer.





User Instruction Reference:   http://ardupilot.org/planner/docs/mission-planner-overview.html





Radiolink Pixhawk Features:

• [High-end Configuration]–Advanced 32F427 ARM Cortex M4 Core high-performance processor, 32bit fail-safe co-processor, MPU 6000 3-axis accelerometer.
• [Excellent Performance]–New layout and technical upgrade base on 3DR PIX. A powerful hardware device can create, you can implement more functions as you want by simple programming.
• [Stabilization]–Producing by automatic and unique automation software testing, it achieved interference less from inner components, built-in barometer sensor to make altitude hold stabilization.
• [Easier Setting]–No complicated setup for beginner and professor player, easy to operation calibration settings on Mission Planner, you will have a good experience of using Radiolink Pixhawk.
• [Multiple Function]–Support OSD and GPS module and more, suit for Long-wheelbase Quadcopter/6-8 Axis Multirotor.



Radiolink Pixhawk Description:

Top Configuration

• 32 bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)
• 168 MHZ / 256 KB RAM / 2 MB Flash
• 32bit Fault Protection Coprocessor
• ST Micro L3GD20H 16 bit gyroscope
• ST Micro LSM303D 14 bit accelerometer/magnetometer
• MPU 6000 3-axis accelerometer/gyroscope
• MEAS MS5611 barometer



Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.



A Good Choice for DIY Drone

Complete installation tutorial, easy to set up, eliminating the cumbersome and complicated installation and calibration process, making your DIY racing drone easier. The Mission Planner can be downloaded from the official website of the Radiolink brand for debugging.

Radiolink PIXHAWK supports a variety of fixed-wing and helicopters, vehicle models and boat models. Supporting Althold, Stabilize, Loiter, Poshold, Return and other flight modes.



PIXHAWK Flight Controller Specifications:

• Connector Port: JST GH connector
• Receiver In: PPM/SBUS
• Transmitter: 6 oneshot/PWM
• USB Voltage: 5v+-0.3v
• Work Voltage: 5.1v
• Work Temperature Rang: -40~80°
• Support Models: Long-wheelbase Quadcopter/6-8 Axis Multirotor
• Mini Pix Size: 8.2*4.3*1.7cm
• Weight: 30g

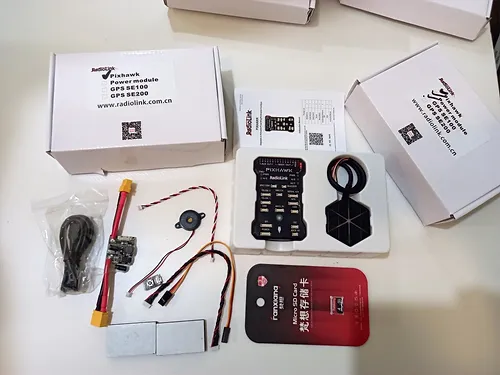

Package Included (Separately Purchase Pixhawl)



• PIXHAWK x 1
• Power Module (2s-6s)x 1
• Safety Button x 1
• Double-Sided Adhesive Tape x2
• Buzzer x 1
• Micro-SD TF Card(4G) x 1
• Three-wire Servo Cable x 1
• Safety Button Connect Cable x1
• Receiver Connect Cable x1
• Power Module Connect Cable x1
