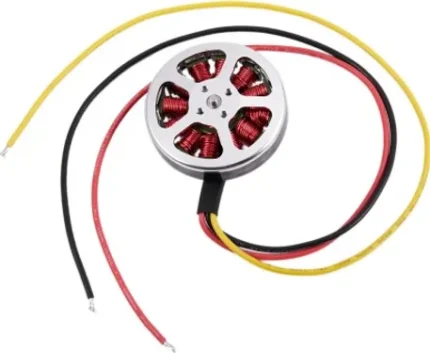

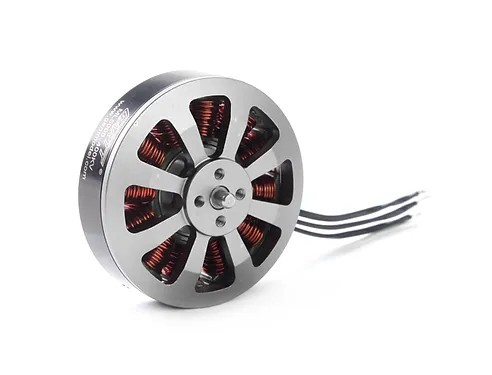

GARTT ML5008 400KV Brushless Motor For RC Multicopter Hexacopter

GARTT ML 5008 400kv thrust 3800gram 3.8kg

Description

High magnetic energy ndfeb magnet steel-n45sh with 150 degrees heat-resistant..
To support the high speed(up to 15000 spin), we used the imported japanese nmb bearing and hrc55 degrees stainless steel axis..
Using the heat-resistant varnished wire enwinding the motor coil, 600mm weld wire(extra-soft silicone wire) can be cut optionally..
Each rotor was balanced with high speed,ensure the motor high-speed runnung without shake..
The vane-type design can reduce motor temperature with a big cloud of steam..
Specifications:

GARTT ML 5008 400kv thrust 3800gram 3.8kg

DATA SHEET:

voltage Propeller Thrust

24v 6s 15×55 3100gram

24v 6s 17×55 3880gram

we also upload the data sheet above in pictures.

Motor KV: 400KV
Motor Resistance (RM): 0.0622 Ω
Idle Current (Io/10V): 0.7A/10V
Max Continuous Current: 40A
Max Continuous Power: 960W
Weight: ≈161g/8.11oz
Lipo Cell: 4-6S
Motor Diameter: 60mm/2.36in
Motor Body Length: 30mm/1.18in
Configu-ration: 24N22P
Overall Shaft Length: 36.7mm/1.44in
Shaft Diameter: 4.0mm/0.157in
Bolt holes spacing: 25mm/0.98in
Bolt thread: M3×8

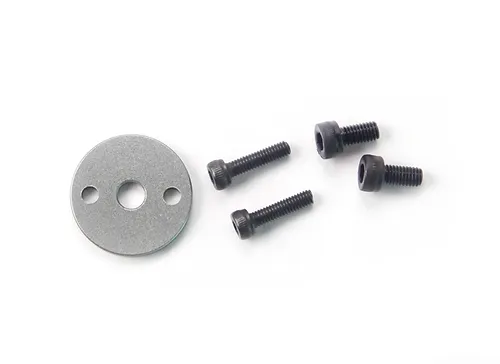

Package include:

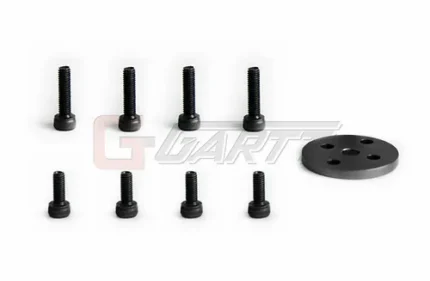

1x ML5008 400KV brushless motor

8x screw

1x propeller plate
