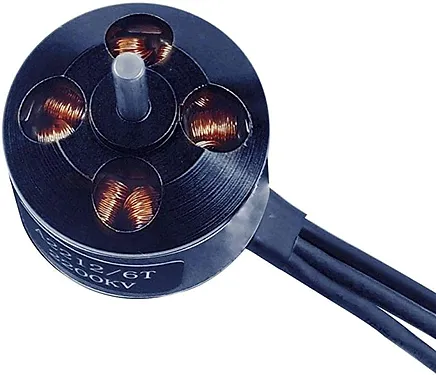

This is a brushless outrunner motor specifically made for quadcopters and multirotors. It is a 2200kV motor.
It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers.
Use this to build powerful and efficient quadcopters.
The comes complete with mounting bolts, prop adapters and power leads.It can be used with our F450 quadcopter frame.
Our 30A ESCs can be used to drive the motor.
Features
- Weight 52 gm
- Runs on 2-3 Cell Li-Po battery
- ESC Requirement minimum 25A
- Length 43.5mm with shaft
- Diameter 28.5mm
- Shaft Diameter 3.17mm
- 980 RPM/V no load speed
- Free Load Current 2.5A
- Maximum Efficiency : 80%
- Thrust with 1047 Prop at 12V: 880gm

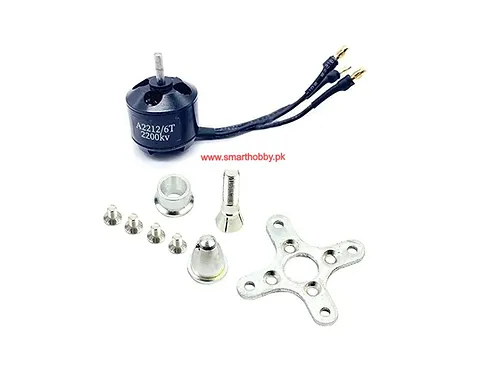

- Included :
- Propeller Adaptor,
- Motor Mount,
- Mounting Screws
