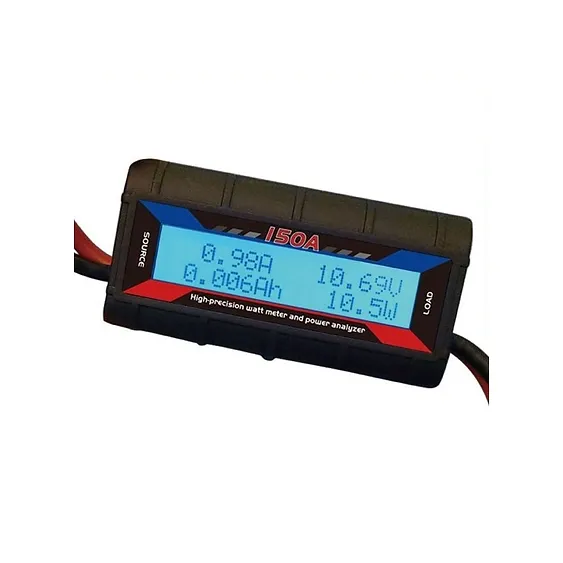

150A Watt Meter and Power Analyser. The most powerfull device on the market. To prevent peak currents damaging battery, Electronic Speed Controllers, motors, wiring and connectors.
This isn’t just a watt meter-it’s the All-In-One Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project.
Features:
- Predict model airplane flight time
- Evaluate R/C battery charging efficiency
- Choose the best propeller/most efficient motor
- Check for wiring and connector power loss
- Measure power and energy consumption of any battery powered device
- Ensure peak currents are safe for motor, ESC & Battery as well as wiring and connectors
Specifications:
- Operates from 4.8v to 60v – 0v with optional auxiliary battery
- Measures 0 to 150A with a resolution of 0.01A
- Measures 0 to 60V with a resolution of 0.01V
- Measures 0 to 6554W with a resolution of 0.01W
- Measures 0 to 65Ah with a resolution of 0.001Ah
- 16 x 2 backlit LCD display
- Dimensions: 85 x 42 x 25 mm
- Weight: 82g
Measures 8 Parameters
- Volts – Real time
- Volts – Minimum
- Amps – Real time
- Amps – Peak
- Watts – Real time
- Watts – Peak
- Amps/Hour
- Watts/Hour
Content :
- 150A high precision watt meter and power analyzer.

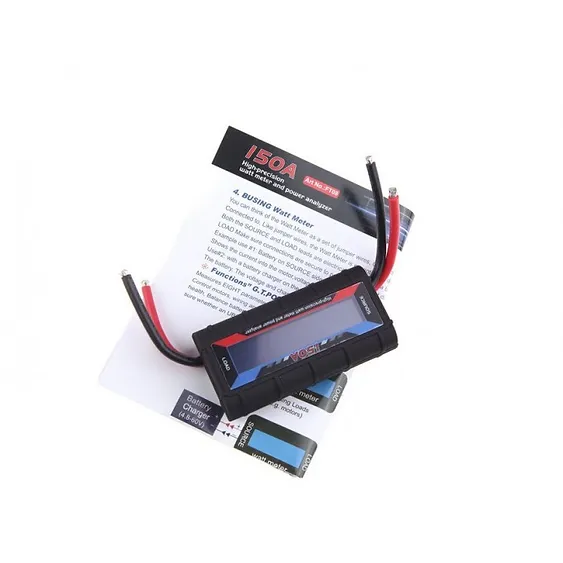

- English manual
